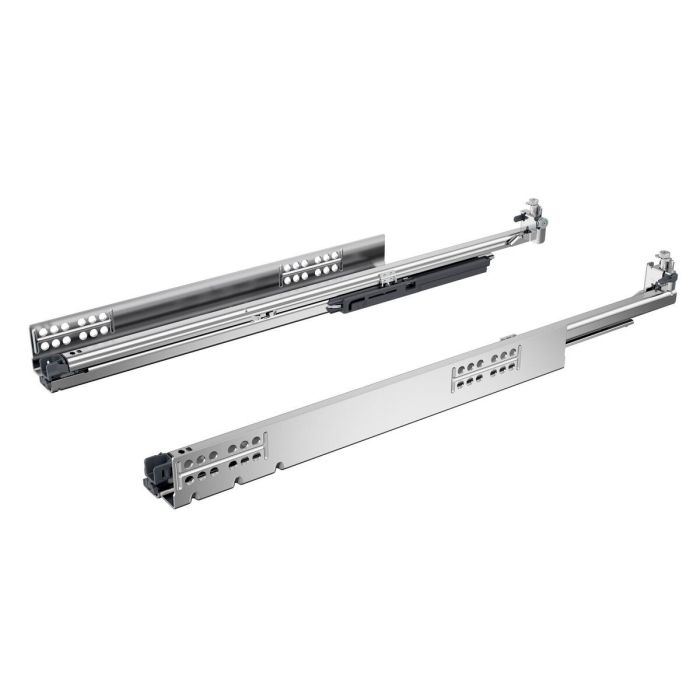

The Hettich Quadro V6 5D M Full Extension Runner provides exceptional running performance and advanced adjustability for high‑quality cabinetry. With a 30 kg load capacity and integrated Silent System, it ensures smooth, quiet closing action. The slide‑on installation features fully tool‑less 5‑direction adjustment—height, side, depth, tilt, and radial—allowing precise drawer alignment. Compatible with optional Push to Open Silent technology and synchronisation systems, it supports modern handle‑less furniture design. Made from galvanised steel and suitable for drawers with side panels up to 16 mm, it meets EN 15338 Level 3 standards for durability.

Key features:

• Full extension Quadro V6 5D M runner (30 kg load class)
• Integrated Silent System for soft, quiet closing
• Compatible with Push to Open Silent (optional)
• Tool‑less 5‑way adjustment:
  • Height: +3 mm
  • Side: ±1.5 mm
  • Depth: +2 / –1 mm
  • Tilt: +4 mm
  • Radial: ±1.5 mm
• Slide‑on installation with 2D catches (ordered separately)
• Optional synchronisation for Push to Open Silent
• Optional pull‑out shelf support and locating catch
• Platform‑based design compatible with Quadro partial and full extension runners
• Suitable for drawer side thickness up to 16 mm
• Galvanised steel construction
• Load capacity certified to EN 15338, Level 3

Set includes:

• 1 × Quadro V6 5D M drawer runner pair (left & right)

Additional notes:

• 2D catches must be ordered separately. You can find them HERE
• Push to Open Silent components available separately
• Pull‑out shelf support and synchronisation kits sold separately
• Pull‑out shelf support reduces drawer length by 10 mm (nominal length – 20 mm)
