Description

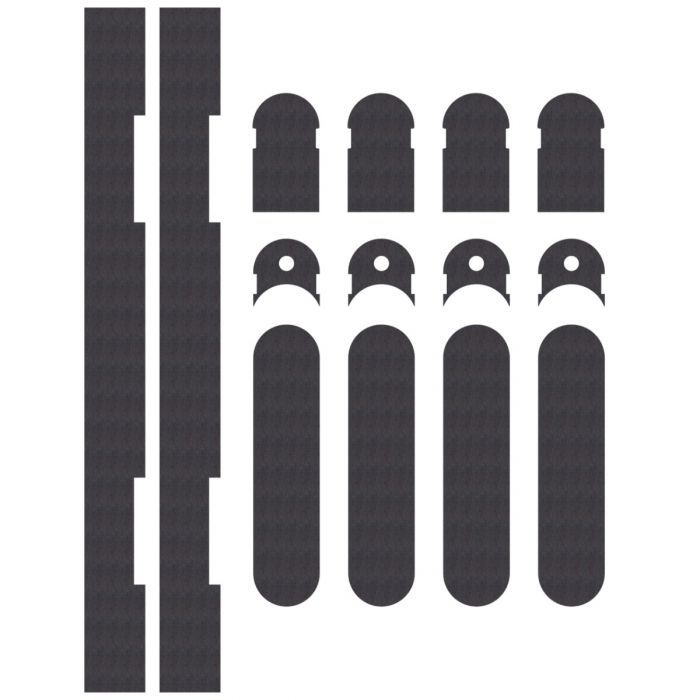

1. 2. Fixings not included. Normally supplied set for a standard 3mm joggle gap, the gap can be adjusted 2mm (minimum) to 6mm (maximum) door gap. Slack both nuts on one side of the hinge counterclockwise. Tighten the allen key clockwise to desired depth3. This heavy-duty hinge is designed to provide seamless functionality while maintaining a discreet appearance. The Eurospec Large Cream 3D Concealed Hinge is the perfect solution for unrebated, flush-faced quality timber doors. Available in Antique Bronze, Black Nickel, Brass, Bronze, Matt Black, Nickel, Satin Brass or Silver. The Zinc casing must be inset in the door to allow for the caps which add 1mm. Repeat the process for the other side of the hinge. Maximum adjusted door weight:- With 2 hinges - 80 kg- With 3 hinges - 120 kg(Load capacity refers to door H2100mm x W850mm) Adjustment Instructions:You will need: - A ratchet or spanner se- An Allen or hex Key set. Plus, with a 10-year mechanical guarantee, you can trust in the durability and reliability of this product. (Note: if you try to adjust one nut at a time there will be little to no depth movement) The height and depth can also be adjusted by slacking the nuts, one side of the hinge controls height, and the other controls depth. Intumescent Fire Kits are also available  Supplied in SINGLES. Tighten up the nuts. With removable cover plates to conceal the adjustment screws, this hinge offers both practicality and aesthetics.
