Description

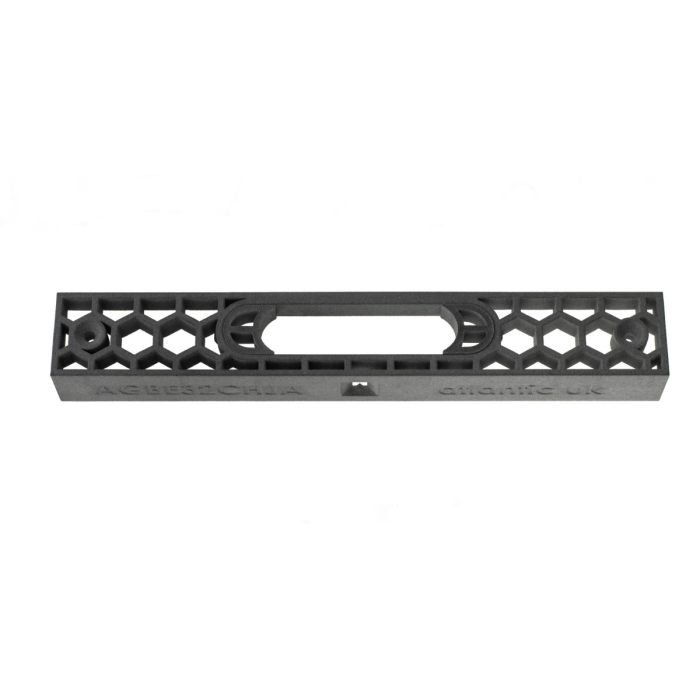

The Atlantic Hardware AGB Eclipse 3.2 Single Jig provides a dedicated installation aid for the 3.2 HD and 3.2 HD SELF concealed hinge variants, subject to the correct machining depth being used. Produced by additive manufacturing in nylon PA12, the jig includes centred and 3mm-offset reference positions and is supplied with two inserts for controlled routing and drilling work.
Key Facts:
- Manufacturer: Atlantic Hardware
- Component type: Concealed hinge installation jig
- Compatible range: AGB Eclipse 3.2
- Suitable for 3.2 HD Concealed Hinge
- Suitable for 3.2 HD SELF Concealed Hinge
- Hinge-specific routing depth must be observed
- Positioning references: Centre and ±3mm
- Construction material: Nylon PA12
- Production method: Additive manufacturing
- Supplied components: 1 jig and 2 inserts
- Intended for new doors and frames
- Minimum door thickness: 35mm
- Maximum frame rebate depth: 12mm
- Top-bearing guided router bit recommended
- Trend C121BX1/4TC given as an example
- 22mm Forstner or non-self-feeding spade bit recommended for full-depth drilling
- Chisel clean-up may be required
- Two-part wood filler can be used to repair accidental router damage to the jig
Fit or Compatibility Note:
Specify only for compatible AGB Eclipse 3.2 hinge installations and machine to the correct depth for the selected hinge. The jig is recommended for new work, with a minimum 35mm door thickness and frame rebates not exceeding 12mm.
