Description

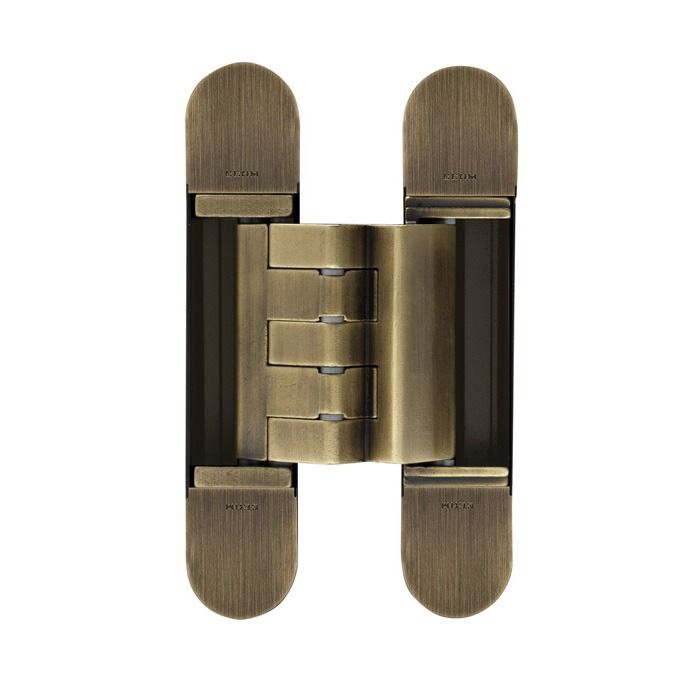

The CEAM 1418 is a substantial offset concealed hinge designed for architectural door specifications requiring adjustment together with additional clearance on the frame or wall side. Its geometry permits cladding up to 18mm thick, while the 150mm hinge is rated for door loads of 80kg on two hinges or 100kg when three are used.
Key Facts:
- Manufacturer: Carlisle Brass / CEAM
- Series: 1418
- 3D adjustable concealed offset hinge
- Height: 150mm
- Width: 30mm
- Depth: 27.8mm
- Minimum door thickness: 38mm
- Suitable for: Wood, Aluminium and Steel doors
- Accommodates frame/wall-side cladding up to 18mm
- Load capacity using 2 hinges: 80kg
- Load capacity using 3 hinges: 100kg
- Applications: Residential, Commercial, Office, Front Door
- Finishes: Antique Brass, Champagne, Electro Brassed, Matt Black, Matt Bronze, Polished Nickel Plated, Silver, White
- Fire resistance is not declared on the current Carlisle Brass datasheet
- Screws not supplied
Fit or Compatibility Note:
Review door dimensions, weight, thickness, cladding build-up and hinge positioning before specification. Special door sizes and applications incorporating door closers should be checked against CEAM technical guidance.
