Description

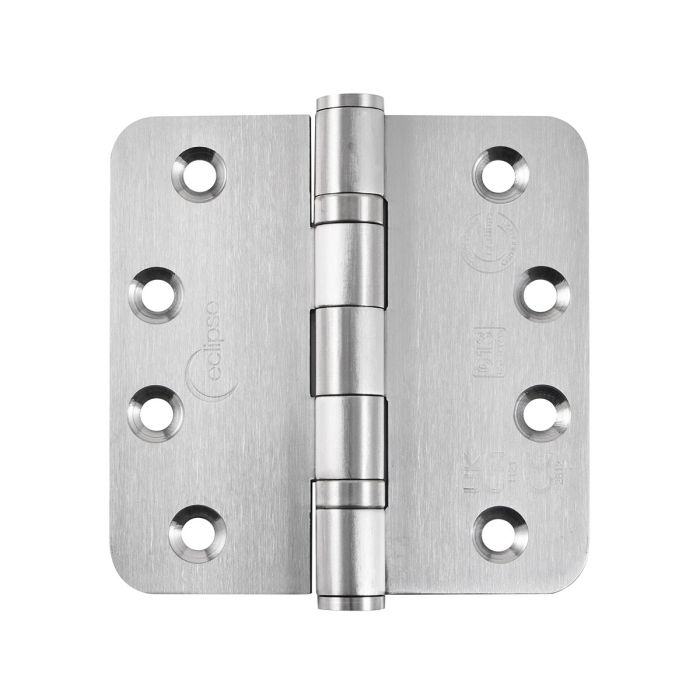

The Eclipse 102 x 102mm Grade 13 Stainless Steel Radius Ball Bearing Hinges are engineered for demanding commercial and public building applications. Manufactured from SUS 201 stainless steel with precision ball bearings and 10mm radius corners, they deliver smooth, reliable operation while meeting recognised European performance and fire safety standards. CE, UKCA and Certifire approved, they are suitable for heavy-duty timber and steel fire doors.

Key Features:
- Eclipse Grade 13 ball bearing hinges
- Manufactured from SUS 201 stainless steel
- Size: 102 x 102mm (4" x 4")
- Precision ball bearing construction for smooth, reliable operation
- 10mm radius corners
- BS EN 1935 Grade 13 certified
- Suitable for doors up to 120kg
- BS EN 1634 fire rated:
  - FD30, FD60, FD90 and FD120 timber fire doors
  - FD240 metal fire doors
- CE, UKCA and Certifire approved
- 12 gauge countersunk fixing holes
- Supplied with 10 × 1¼" Pozi Drive screws
- Pack quantity: 2 hinges (1 pair)
