Description

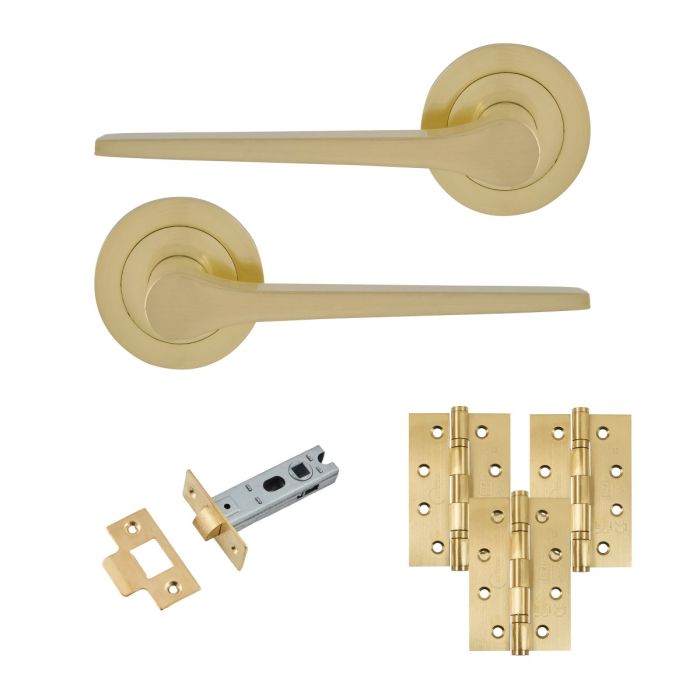

This Eclipse Freestyle Monte pack brings together a defined group of components for a compatible latched door arrangement. The sprung lever set is mounted on screw-on roses, while the supplied 76mm tubular latch incorporates bolt-through provision.

Three hinges complete the pack. The 76x51mm G7 and 102x67mm G7 specifications are stated for doors up to 40kg, with the 102x76mm G11 option listed for doors up to 80kg.

Key Facts:
- Manufacturer: Eclipse
- Collection: Freestyle Monte
- Latch door furniture pack
- One set of sprung lever handles
- Screw-on rose construction
- One 76mm bolt-through tubular latch
- Three hinges supplied
- Hinge specifications: 76x51mm G7, 102x67mm G7, 102x76mm G11
- 76x51mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x67mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x76mm G11: Maximum door weight 80kg, stated door width 40-44mm

Fit or Compatibility Note:
Review the latch preparation and selected hinge specification before installation, ensuring that the hinge grade and size correspond with the stated door weight and dimensional limits.
