Description

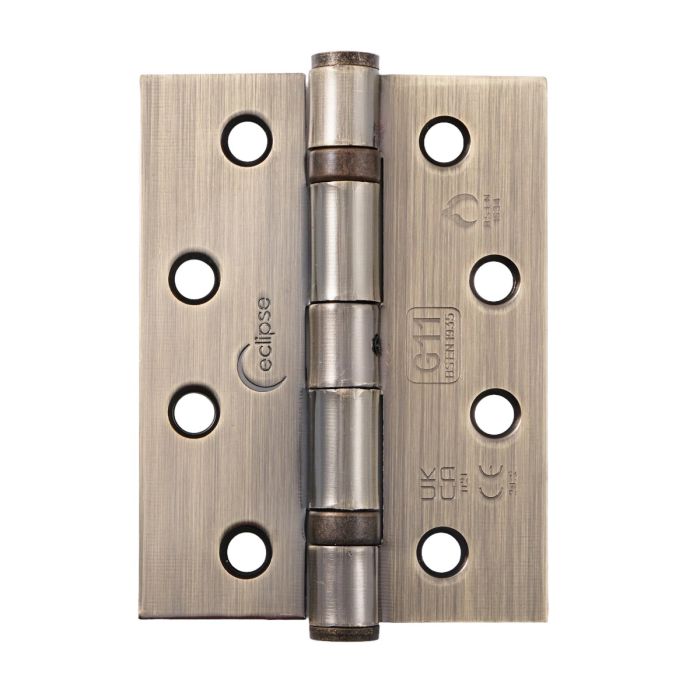

This Eclipse ball bearing hinge is manufactured from mild steel and specified to Grade 11 for a maximum total door mass of 80kg. Its tested specification includes BS EN 1935 durability performance, BS EN 1634 fire testing and CE and UKCA credentials, providing a clearly defined hinge option for compatible architectural door assemblies.
Key Facts:
- Manufacturer: Eclipse
- Ball bearing hinge construction
- Material: Mild steel
- Size: 102x76x.7mm
- Grade: 11
- Maximum total door mass: 80kg
- BS EN 1935 tested to 200,000 cycles
- Fire tested to BS EN 1634
- Stated fire performance: FD30, 60-minute timber door
- Certification: CE, UKCA
- 10 gauge countersunk
- Fixings: 10x1.1/2" Pozi Drive screws with 3/4" threaded section
- Quantity supplied: 1 pair
Fit or Compatibility Note:
Review the hinge size, door mass and prepared fixing positions before specification. Where fire performance is required, assess the hinge in relation to the complete tested door assembly.
