Description

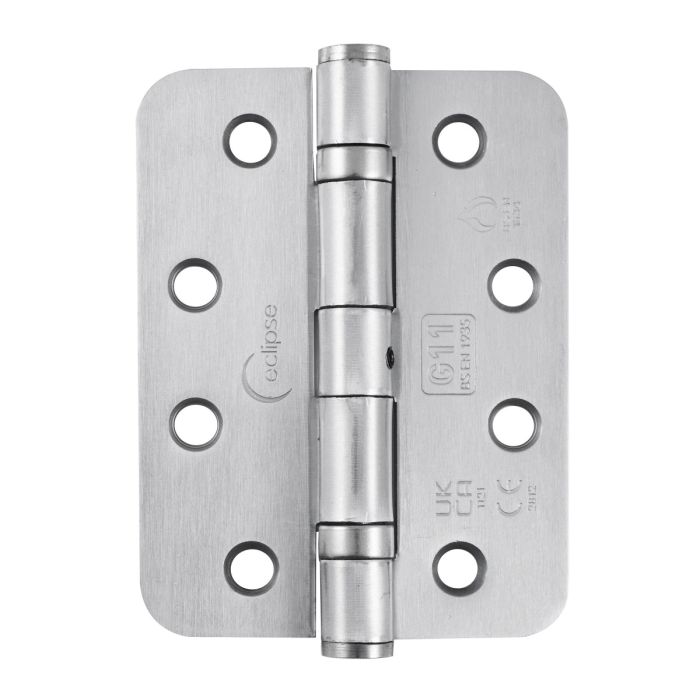

This Eclipse hinge uses a mild steel ball bearing construction with 10mm radius corners, providing a clearly defined option for doors prepared for radiused hinge recesses. Its stated specification combines Grade 11 door-mass capability with BS EN 1935 durability testing and BS EN 1634 fire testing.
Key Facts:
- Manufacturer: Eclipse
- Ball bearing hinge construction
- Material: Mild steel
- Size: 102x76x2.7mm
- Radius corners: 10mm
- Product classification: Grade 11
- Maximum total door mass: 80kg
- BS EN 1935 tested
- Durability performance: 200,000 cycles to Grade 13
- Fire tested to BS EN 1634
- Stated fire performance: FD30, 60-minute timber door
- Certification: CE, UKCA
- 10 gauge countersunk
- Fixings: 10x1.1/2" Pozi Drive screws with 3/4" threaded section
- Quantity supplied: 1 pair
Fit or Compatibility Note:
Review the hinge recess, 10mm radius preparation, door mass and fixing positions before specification. Where fire performance is required, assess the hinge as part of the complete tested door assembly.
