Description

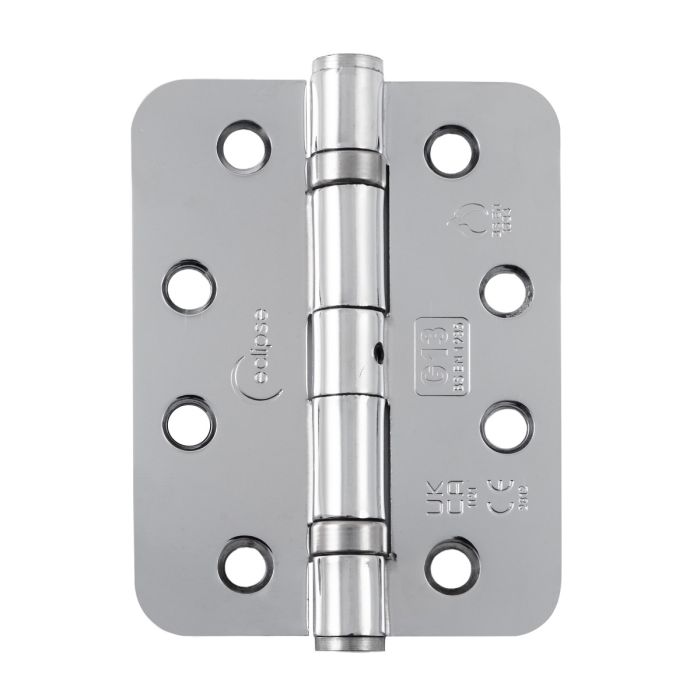

This Eclipse ball bearing hinge is manufactured from mild steel and formed with 10mm radius corners for compatible radiused hinge preparations. Its specification combines Grade 13 performance for doors up to 120kg total mass with BS EN 1935 durability testing, BS EN 1634 fire testing and CE and UKCA credentials.
Key Facts:
- Manufacturer: Eclipse
- Ball bearing hinge construction
- Material: Mild steel
- Size: 102x76mm
- Radius corners: 10mm
- Grade: 13
- Maximum total door mass: 120kg
- BS EN 1935 tested to 200,000 cycles
- Fire tested to BS EN 1634
- Stated fire performance: FD30, 60-minute timber door
- Certification: CE, UKCA
- 10 gauge countersunk
- Fixings: 10x1.1/2" Pozi Drive screws with 3/4" threaded section
- Quantity supplied: 1 pair
Fit or Compatibility Note:
Review the hinge dimensions, 10mm corner radius, door mass and prepared recess before specification. Where fire performance is required, assess the hinges as part of the complete tested door assembly.
