Description

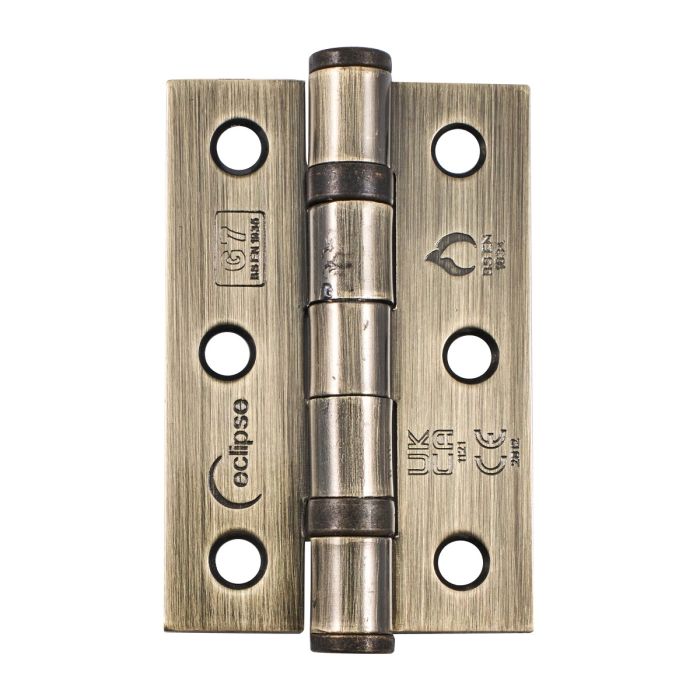

Manufactured from mild steel, this Eclipse ball bearing hinge provides a compact Grade 7 specification for compatible door assemblies up to 40kg total mass. Its documented performance includes BS EN 1935 durability testing, BS EN 1634 fire testing and CE and UKCA certification references.
Key Facts:
- Manufacturer: Eclipse
- Ball bearing hinge construction
- Material: Mild steel
- Size: 76x51x2mm
- Grade: 7
- Maximum total door mass: 40kg
- BS EN 1935 tested to 200,000 cycles
- Fire tested to BS EN 1634
- Stated fire performance: FD30 timber door
- CE reference: 2812
- UKCA reference: 1121
- 8 gauge countersunk
- Fixings: 8x1" screws with 3/4" threaded section
- Quantity supplied: 2 pieces
Fit or Compatibility Note:
The stated title dimension of 76x52mm differs from the supplied technical size of 76x51x2mm, so this should be verified before specification. Fire-rated use should be assessed as part of the complete tested door assembly.
