Description

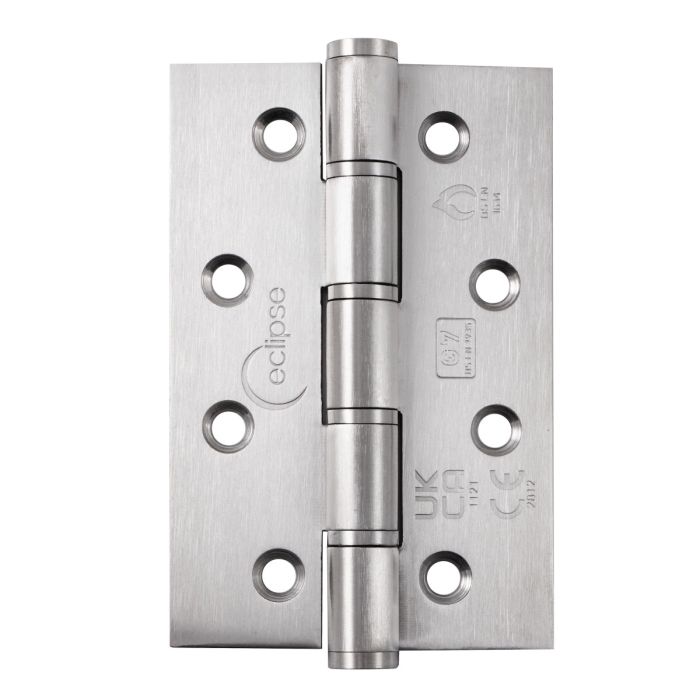

Constructed from SUS 201 stainless steel, this Eclipse washered hinge uses four washers to provide a smooth bearing action while retaining a notably slim knuckle. The 102x67x2.5mm format is intended to accommodate installations where a 102mm hinge is required within a 33mm-wide door preparation.
Its specification includes Grade 7 performance under BS EN 1935, tested through 200,000 cycles, with a stated maximum total door mass of 40kg. The hinge is also presented as a retrofit option for compatible older DSW and DPBW brass butt hinges.
Fire testing is stated to BS EN 1634, including FD30 and 60-minute timber door performance and FD240 steel door performance. Certification references comprise CE 2812, UKCA 1121 and Certifire CF336. Each pack contains two hinges with 8x1.1/4" Pozi Drive threaded screws.
Key Facts:
- Manufacturer: Eclipse
- Washered bearing hinge
- SUS 201 stainless steel construction
- Size: 102x67x2.5mm
- Slim knuckle profile
- Four washers
- Performance grade: Grade 7
- Maximum total door mass: 40kg
- BS EN 1935 tested to 200,000 cycles
- Fire tested to BS EN 1634
- Stated fire performance: FD30 and 60-minute timber door, FD240 steel door
- CE reference: 2812
- UKCA reference: 1121
- Certifire reference: CF336
- 8 gauge countersunk
- Supplied with 8x1.1/4" Pozi Drive threaded screws
- Quantity supplied: 2 pieces
Fit or Compatibility Note:
Review the hinge dimensions, door mass and prepared door width before specification. Where fire performance is required, the hinge should be considered as part of the tested and specified complete door assembly.
