Description

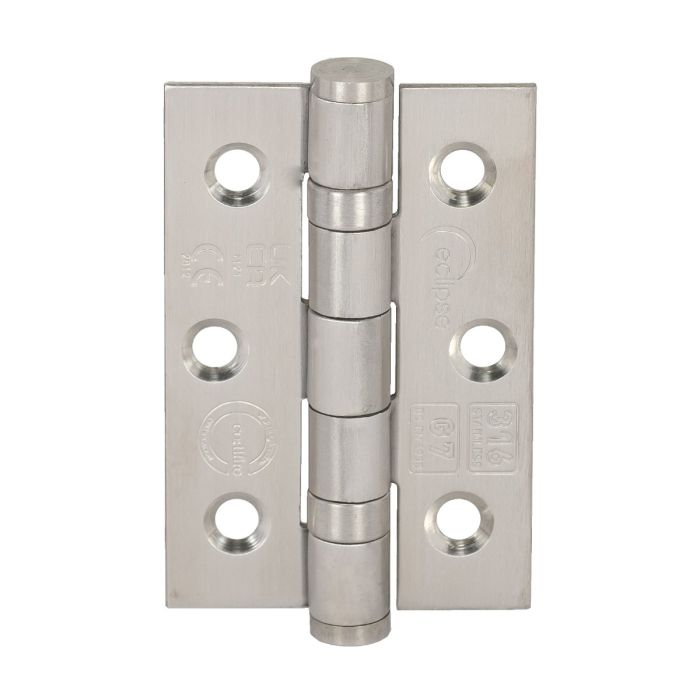

The Eclipse Grade 7 SUS 316 Stainless Steel Ball Bearing Hinges are designed for external and coastal applications where exceptional corrosion resistance and reliable performance are essential. Manufactured from premium SUS 316 stainless steel, they feature precision ball bearings for smooth, low-friction operation while meeting recognised European performance and fire safety standards. Ideal for residential and light commercial installations, these hinges are suitable for timber and steel fire doors.

Key Features:
- Eclipse Grade 7 ball bearing hinges
- Manufactured from premium SUS 316 stainless steel
- External grade construction for coastal and corrosive environments
- Size: 76 x 51 x 2mm (3" x 2")
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested to Grade 7
- Tested to 200,000 operating cycles
- Suitable for doors up to 40kg total door mass
- BS EN 1634 fire rated:
  - FD30 and FD60 timber fire doors
  - FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 8 gauge countersunk fixing holes
- Supplied with 8 × 1¼" Pozi Drive threaded screws
- Supplied complete with fixings
- Pack quantity: 2 hinges (1 pair)
