Eclipse Insignia Linear Bathroom Door Pack with 76mm Lock & 3 Hinges

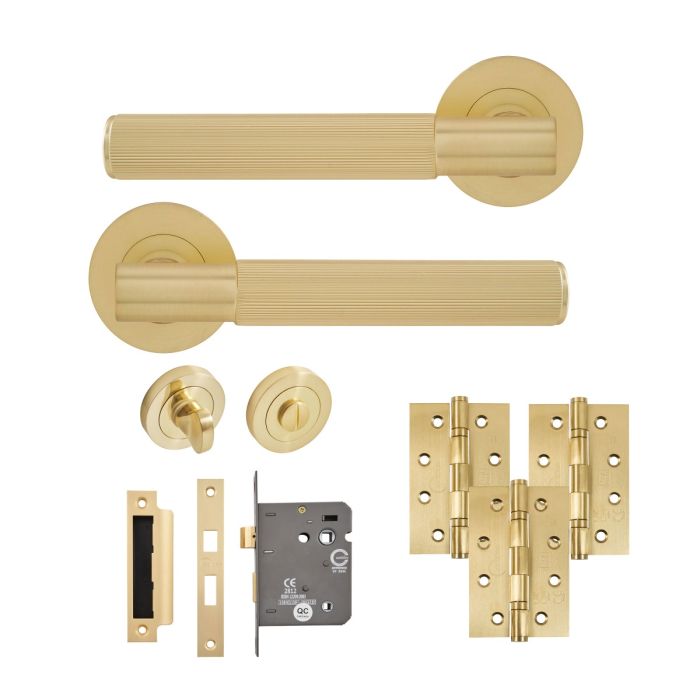

An Eclipse Insignia Linear bathroom door hardware pack comprising a 76mm reversible lock case, sprung lever furniture, non-indicating thumbturn and release, and three hinges selected from G7 or G11 options.
Description
This Eclipse Insignia Linear pack provides the principal ironmongery specified for the supplied bathroom door arrangement. It contains one 76mm reversible bathroom lock case, one set of sprung levers with screw-on roses and one set of non-indicating bathroom thumbturn and release furniture.
Three hinges complete the pack, with the specification chosen according to the available sizes and stated door requirements. The 76x51mm G7 and 102x67mm G7 options are given for 40kg doors with a 30-35mm stated door dimension. The larger 102x76mm G11 option is given for 80kg doors with a 40-44mm stated door dimension.
Key Facts:
- Manufacturer: Eclipse
- Model: Insignia Linear
- Bathroom lock case: 76mm, reversible
- Lever furniture: Sprung levers with screw-on rose
- Thumbturn: Non-indicating thumbturn and release
- Hinge options: 76x51mm G7, 102x67mm G7, 102x76mm G11
- 76x51mm G7: For doors up to 40kg, stated door width 30-35mm
- 102x67mm G7: For doors up to 40kg, stated door width 30-35mm
- 102x76mm G11: For doors up to 80kg, stated door width 40-44mm
Fit or Compatibility Note:
Confirm the hinge grade and dimensions against the door weight and stated door dimension, and check that the 76mm reversible bathroom lock suits the required door preparation.
