Description

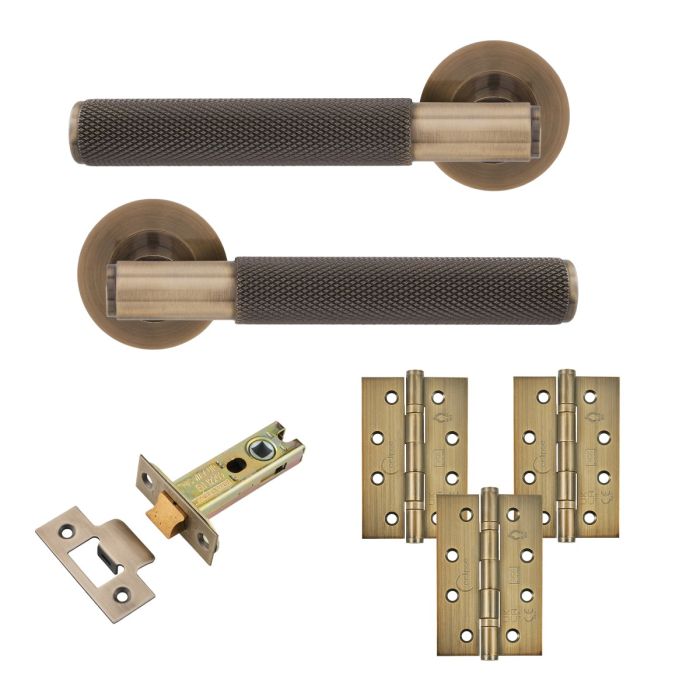

This Eclipse Insignia Knurled pack provides a coordinated group of fittings for a compatible latched door assembly. The sprung lever furniture is mounted on screw-on roses, with the Knurled design giving the handle set a clearly defined visual character.
The pack includes one 76mm tubular latch with bolt-through provision and three hinges. The 76x51mm G7 and 102x67mm G7 options are stated for doors up to 40kg, while the 102x76mm G11 specification is listed for doors up to 80kg.
Key Facts:
- Manufacturer: Eclipse
- Collection: Insignia Knurled
- Latch door furniture pack
- One set of sprung lever handles
- Screw-on rose construction
- One 76mm bolt-through tubular latch
- Three hinges supplied
- Hinge specifications: 76x51mm G7, 102x67mm G7, 102x76mm G11
- 76x51mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x67mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x76mm G11: Maximum door weight 80kg, stated door width 40-44mm
Fit or Compatibility Note:
Review the latch preparation and hinge specification before selection, ensuring the chosen hinge size and grade correspond with the stated door weight and dimensional limits.
