Description

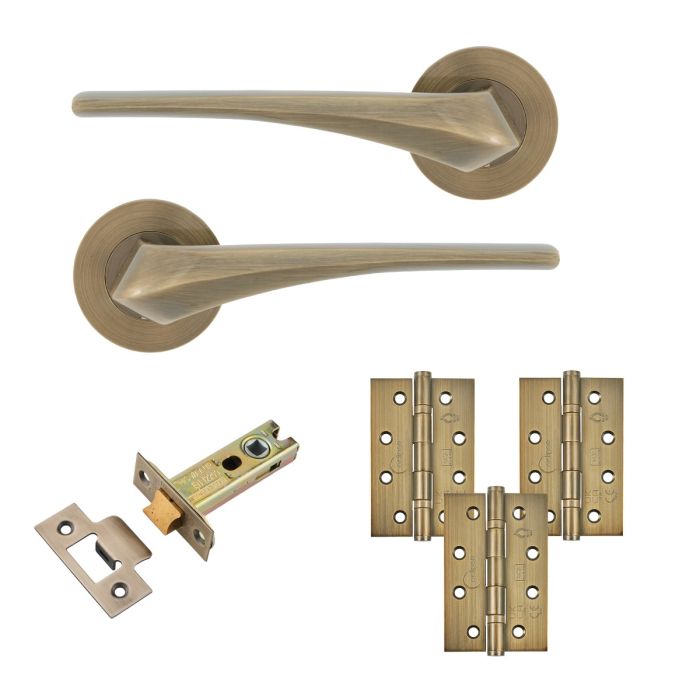

This Eclipse Insignia Lanza pack provides a coordinated group of components for a compatible latched door assembly. The sprung lever furniture is mounted on screw-on roses, while the 76mm tubular latch incorporates bolt-through provision.

Three hinges complete the specification. The 76x51mm G7 and 102x67mm G7 options are stated for doors up to 40kg, while the 102x76mm G11 specification is listed for doors up to 80kg.

Key Facts:
- Manufacturer: Eclipse
- Collection: Insignia Lanza
- Latch door furniture pack
- One set of sprung lever handles
- Screw-on rose construction
- One 76mm bolt-through tubular latch
- Three hinges supplied
- Hinge specifications: 76x51mm G7, 102x67mm G7, 102x76mm G11
- 76x51mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x67mm G7: Maximum door weight 40kg, stated door width 30-35mm
- 102x76mm G11: Maximum door weight 80kg, stated door width 40-44mm

Fit or Compatibility Note:
Review the latch preparation and hinge specification before selection, ensuring the chosen hinge size and grade correspond with the stated door weight and dimensional limits.
