Description

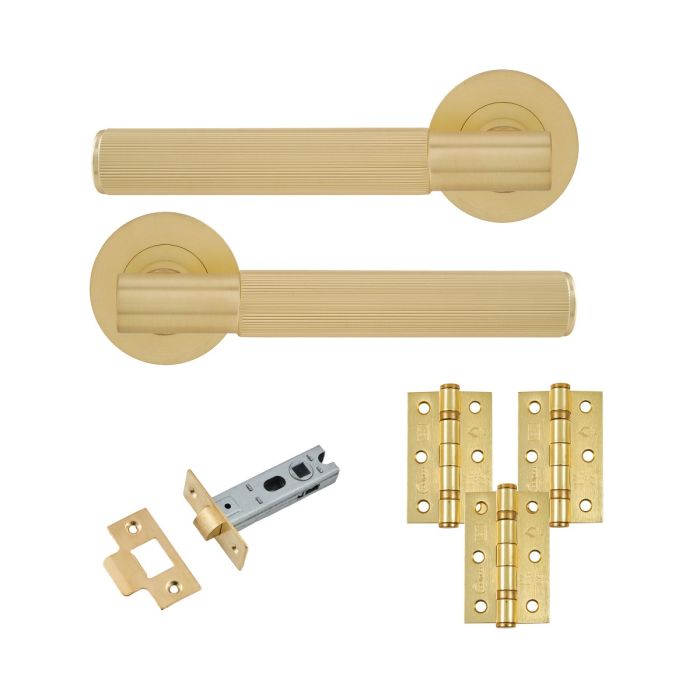

This Eclipse Insignia Linear Premium Latch Pack is specified with one set of sprung levers on screw-on roses and one 76mm bolt-through tubular latch. The supplied format provides the lever furniture, latch and three hinges as a coordinated hardware pack.
Hinge selection is based on the listed size, grade, door weight and door width. Two G7 options are available: 76x51mm and 102x67mm, both stated for 40kg doors with a door width of 30-35mm. The 102x76mm G11 hinge is stated for 80kg doors with a door width of 40-44mm.
Key Facts:
- Manufacturer: Eclipse
- Product range: Insignia Linear
- Lever furniture: 1 set sprung levers with screw-on rose
- Tubular latch: 76mm bolt-through
- Hinge quantity: 3 no
- 76x51mm G7 and 102x67mm G7: For 40kg doors, stated door width 30-35mm
- 102x76mm G11: For 80kg doors, stated door width 40-44mm
Fit or Compatibility Note:
Before specification, verify the selected hinge dimensions and grade against the stated door weight and width requirements, together with the required preparation for the 76mm bolt-through latch.
