Description

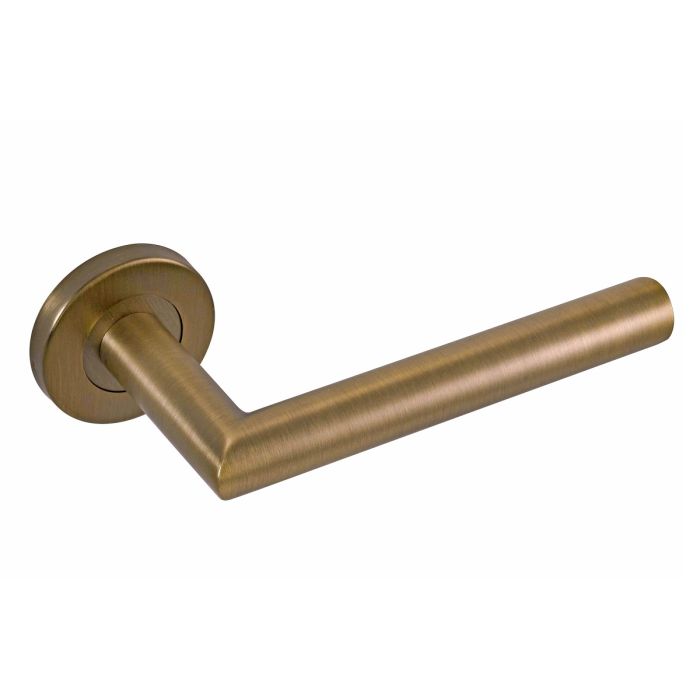

The Precision Mitred lever is defined by its angular junction and restrained tubular form. Manufactured from 19mm stainless steel tube, the handle measures 140x48mm and presents a clear modern architectural profile.

A 52x8mm sprung rose supports the lever, while the clip-on cover conceals the mounting components after installation. The fitting has completed 100,000 performance test cycles and is BS EN 1634 fire tested with a stated rating of 60 minutes. Bolt-through installation fixings are included.

Key Facts:
- Manufacturer: Eclipse
- Collection: Precision
- Mitred lever-on-rose configuration
- 19mm tubular stainless steel construction
- Lever size: 140x48mm
- Sprung rose size: 52x8mm
- Concealed clip-on rose design
- Sprung lever action
- Durability testing: 100,000 cycles
- Fire-test standard: BS EN 1634
- Fire resistance: 60 minutes
- Bolt-through fitting components included

Fit or Compatibility Note:
Review the latch or lock arrangement, fixing positions and door preparation before specification. Fire-rated use should be considered in relation to the tested complete door assembly.
