Description

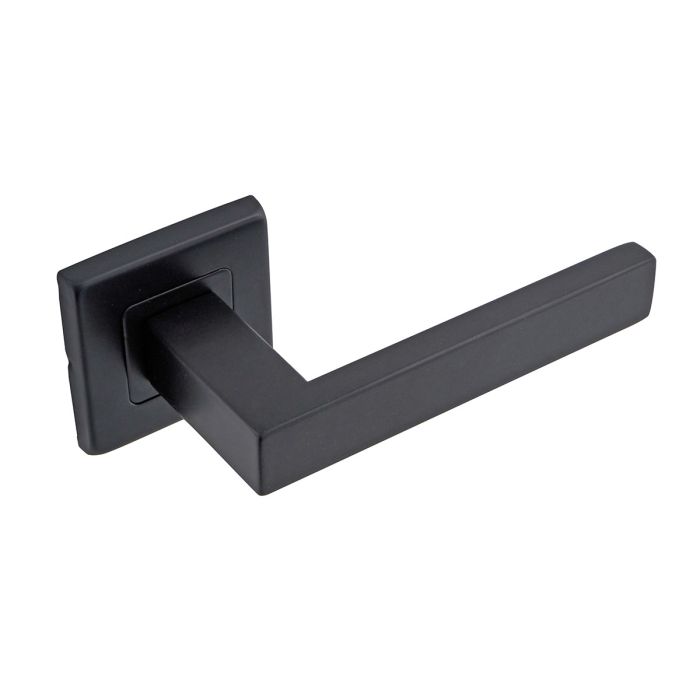

The Precision design is defined by its clear square geometry and restrained stainless steel construction. Its rose clips over the mounting components, leaving the completed fitting without exposed fixing heads and maintaining a controlled architectural appearance.
The lever is sprung and designed for doors from 33mm to 44mm thick. Bolt-through components are supplied for installation. Performance testing covers 100,000 cycles, while BS EN 1634 fire testing and an FD60 rating form part of the stated specification.
Key Facts:
- Manufacturer: Eclipse
- Square Precision lever design
- Stainless steel construction
- Sprung lever mechanism
- Concealed clip-on rose
- Applications: Residential projects, commercial projects
- Door thickness range: 33–44mm
- Bolt-through fitting components included
- Durability testing: 100,000 cycles
- Fire tested to BS EN 1634
- FD60 fire rated
Fit or Compatibility Note:
Review the door preparation, fixing positions and associated lock or latch before specification. Any fire-rated application should be assessed as part of the certified complete door assembly.
