Description

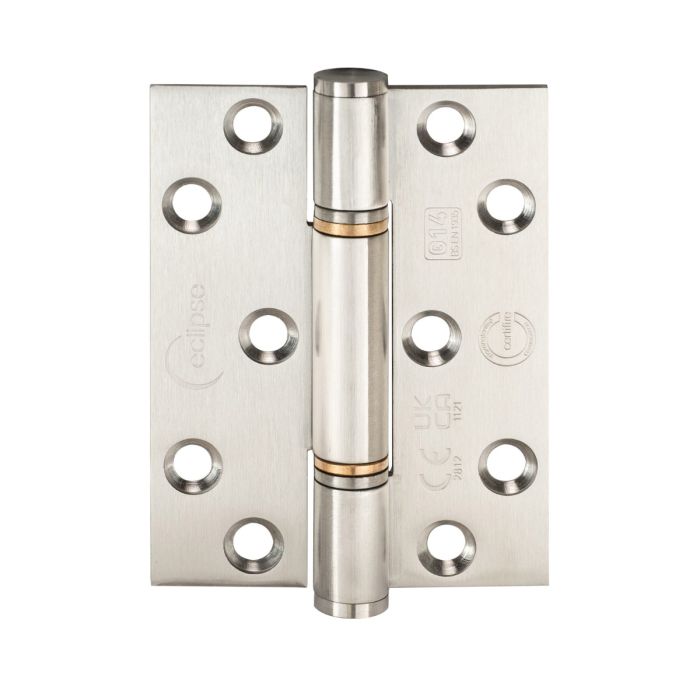

The Eclipse Grade 14 Stainless Steel 316 Thrust Bearing External Hinges are engineered for demanding external and coastal environments where exceptional corrosion resistance, durability and fire performance are essential. Manufactured from premium SUS 316 stainless steel with precision thrust bearings, they provide exceptionally smooth, low-friction operation while meeting the highest European performance and fire safety standards. Suitable for doors weighing up to 160kg, they are ideal for heavy-duty commercial, public and residential applications.

Key Features:
- Eclipse Grade 14 thrust bearing external hinges
- Manufactured from premium SUS 316 stainless steel
- Ideal for external, coastal and corrosive environments
- Size: 102 x 76 x 3mm (4" x 3")
- Precision thrust bearing construction for smooth, low-friction operation
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
  - FD30, FD60, FD90 and FD120 timber fire doors
  - FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Available in packs of 2
- Supplied complete with fixings
