Description

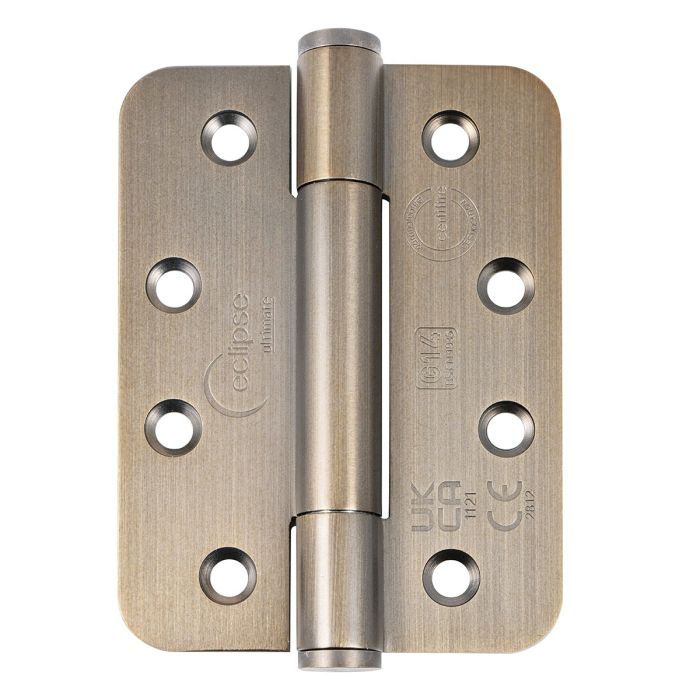

The Eclipse 102 x 76mm (4" x 3") Grade 14 Stainless Steel Radius Concealed Bearing Hinges are designed for high-traffic commercial and public buildings where strength, durability and fire performance are essential. Manufactured with 10mm radius corners and concealed bearings, they provide smooth, low-maintenance operation while meeting the highest European performance standards. Suitable for doors weighing up to 160kg, they are fully CE, UKCA and Certifire approved for timber and steel fire door applications.

Key Features:
- Eclipse Grade 14 radius concealed bearing hinges
- Manufactured from stainless steel
- Size: 102 x 76 x 3mm (4" x 3")
- Manufactured with 10mm radius corners
- Concealed bearing construction for smooth, reliable operation
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
  - FD30, FD60, FD90 and FD120 timber fire doors
  - FD240 steel fire doors
- CE 1121, UKCA 2812 and Certifire approved
- 10 gauge countersunk fixing holes
- Supplied with 10 × 1¼" fully threaded screws
- Pack quantity: 2 hinges (1 pair)
