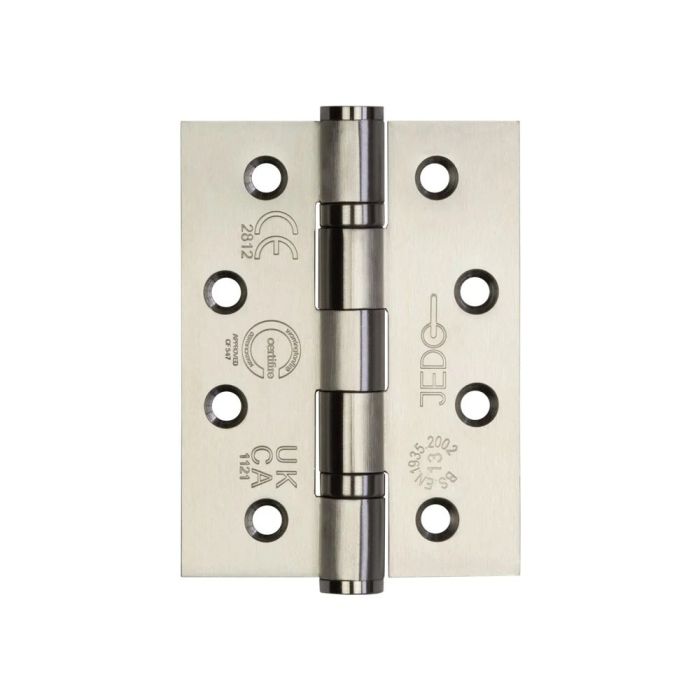

The Frelan Jedo Grade 13 Ball Bearing Hinge Pack (J9533SSS) is engineered for high‑performance internal doors where strength, reliability, and fire‑door compliance are essential. Manufactured from Grade 201 stainless steel, these hinges offer smooth long‑term operation thanks to their ball‑bearing construction, making them suitable for heavy‑traffic commercial locations as well as robust residential setups.

Certifire approved and rated for FD30/60 fire doors, this 3‑hinge pack provides a tested and compliant solution for high‑spec installations. With a 120kg maximum door weight capacity, they meet the demands of schools, offices, public buildings, and premium residential interiors. The Satin Stainless Steel finish completes the look with a clean, professional appearance suitable for modern environments.

Key features:

• Type: Grade 13 ball bearing hinge for heavy‑duty performance
• Material grade: 201 stainless steel
• Finish: Satin Stainless Steel
• Mechanical cycles: Tested to 200,000 cycles
• Max door weight: 120kg (using 3 hinges)
• Fire rating: FD30/60 Certifire approved
• Certification: UKCA and CE marked for assured compliance
• Corrosion grade: 4
• Use: Internal — commercial and residential
• Mechanical warranty: 10 years
• Fixings included:
  • 16 × wood screws (thread length: 28mm, diameter: 5mm)
• Pack size: Set of 3 hinges
